CREATING AND PROFILING THE SECOND DATASET

3. Creating an RDS-based datasets & Profiling the Data (with Quality Rules).

Follow the steps below to create another DataBrew dataset

      1. Click the DATASETS icon on the left.

      2. Click the Connect new dataset button in the middle.

      3. Under New dataset details set Dataset name to IncomeBand.

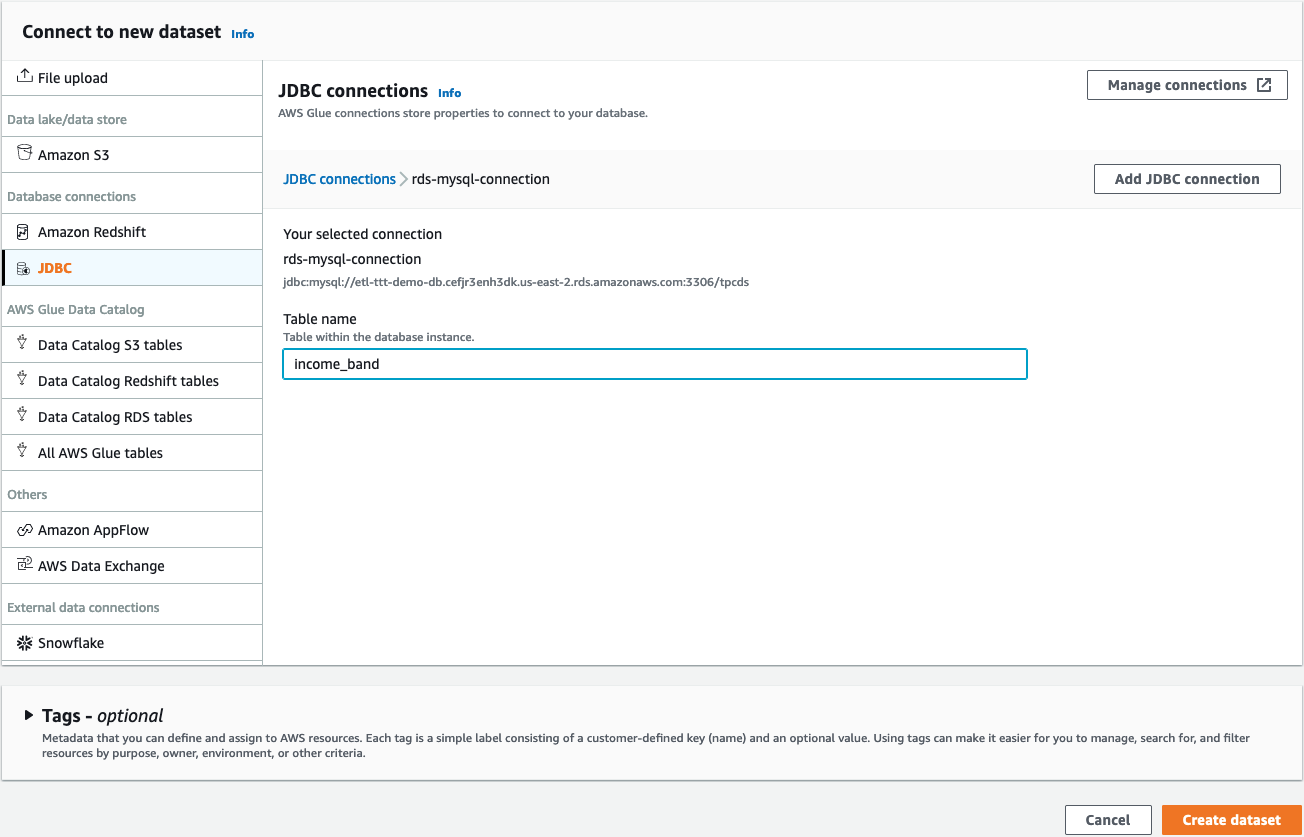

      4. Under Connect to new dataset click JDBC this time which is under the Database Connections section.

      5. In the JDBC connections list, click on rds-mysql-connection, then type income_band in the Table name textfield.

      6. Click on the Create dataset button.

4. Profiling the second Dataset leveraging Quality Rules.

Once the second dataset is created, we will run the profiling job on the new dataset.

      1. Click the checkbox next to the IncomeBand dataset.

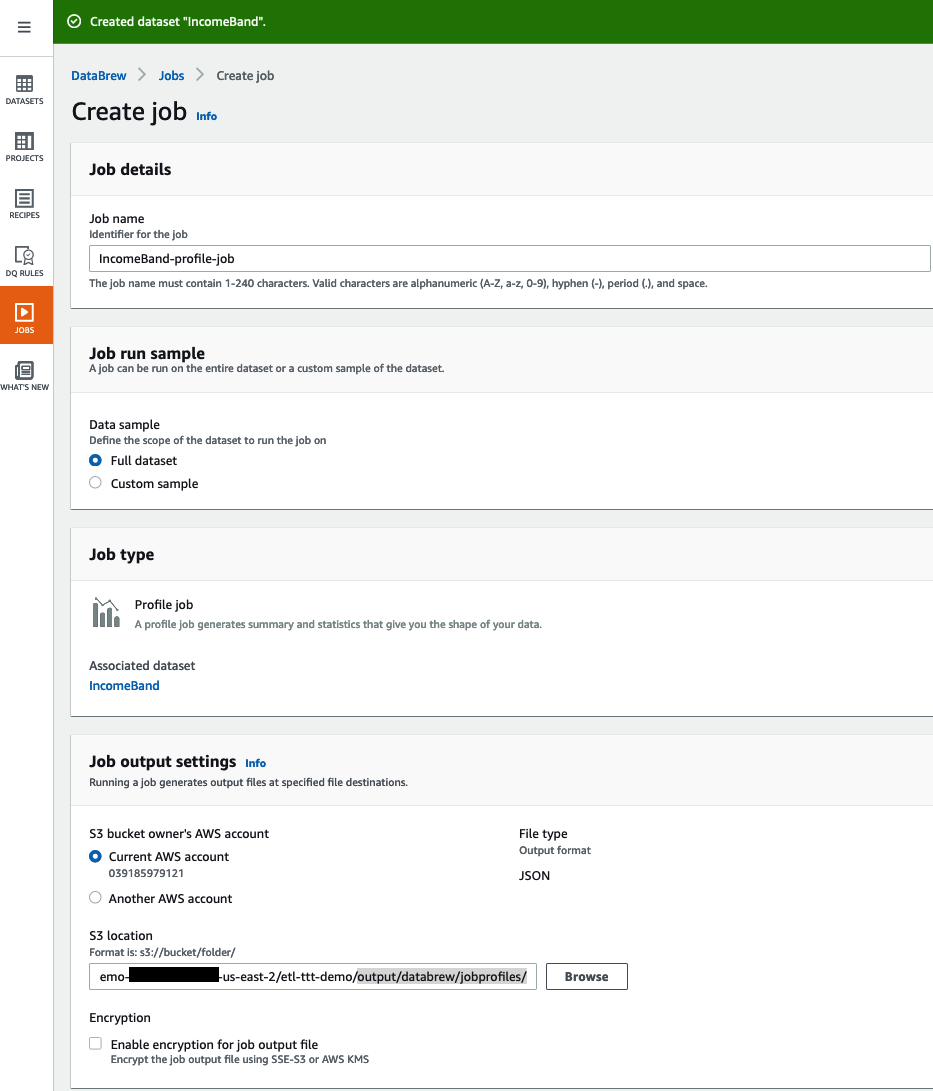

      2. Click ▶ Run data profile on the top. On the pop-up window click Create profile job to open Create job page.

      3. Under Job details, set Job name to IncomeBand-profile-job.

      4. Under Job run sample select Full dataset.

      5. Under Job output settings click on the Browse button to set the S3 location to s3://\$BUCKET_NAME/etl-ttt-demo/output/databrew/jobprofiles/ (You should have the full path now!).

      6. Skip the next Dataset profile configurations - optional and scroll down to Data quality rules. Click on the Apply data quality ruleset button.

      7. On the pop-up window, click on the button Create data quality ruleset. (This will take you to a different tab in your browser. Do not close the previous tab!)

      8. On this new tab, name the Ruleset as IncomeBand-Ruleset and verify that Associated dataset shows IncomeBand there.

      9. This time, DO NOT click on the Recommendations(2) tab on the right side of the screen. Just edit the existing Rule 1 already there.

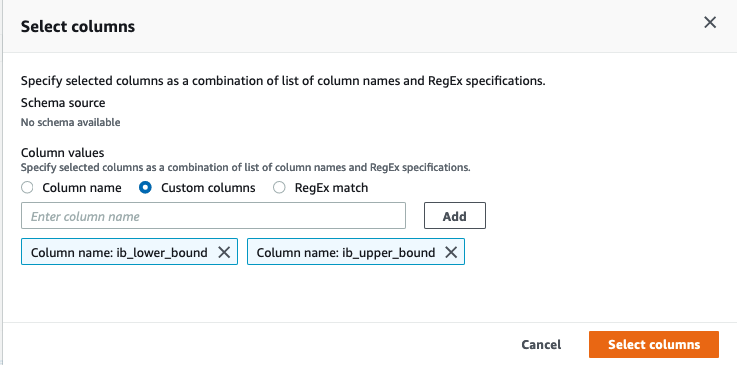

Note: For this Rule 1, under Selected Columns, choose Selected columns and click on the Select columns button, then select Custom columns, type ib_lower_bound in the field and click Add, then type ib_upper_bound and click Add again. Then, click the oragne Select columns button. See the following picture:

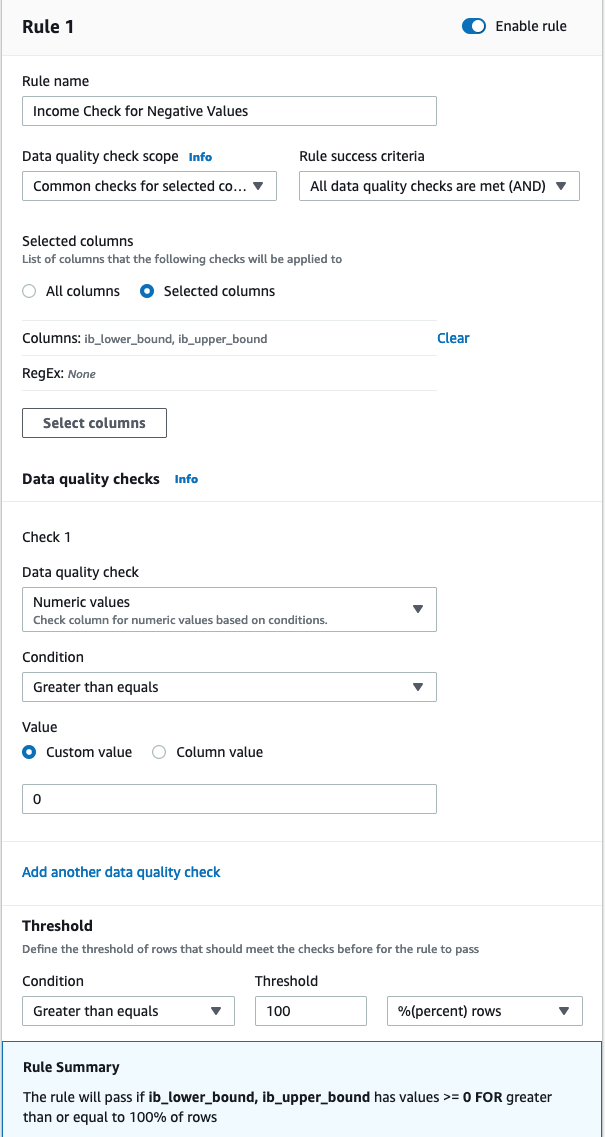

      13. Confirm that all the Rule Summaries (Blue banner) says: "The rule will pass if ib_lower_bound, ib_upper_bound has values >= 0 FOR greater than or equal to 100% of rows

      14. Click on Create ruleset button at the bottom of the page. You can close this tab now and you should get back to previous one where the Apply data quality rules pop-up window is still open.

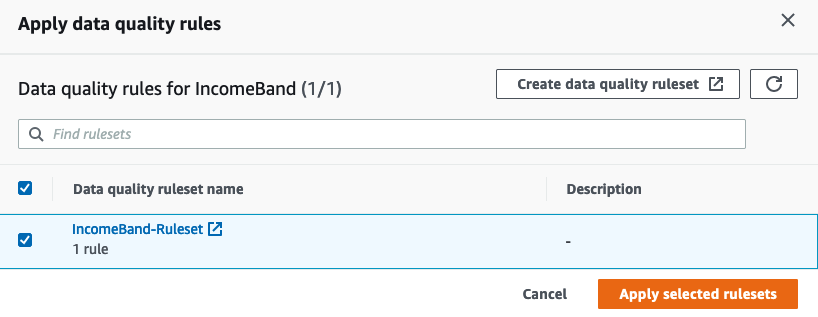

      15. Still on this pop-up window, click on the refresh button, choose the ruleset IncomeBand-Ruleset you just created and click on Apply selected rulesets.

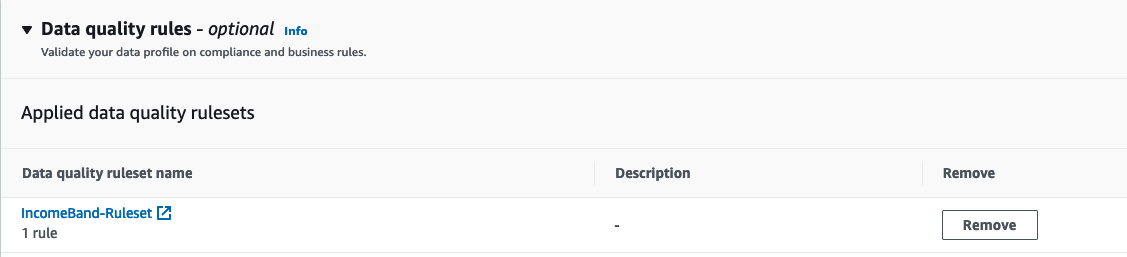

You should see this now:

      16. Scroll to Permission, select AWSGlueDataBrewServiceRole-etl-ttt-demo for Role name. Then, click Create and run job.

The profile job takes about 5 minutes. You don't need to wait for it to finish. Let's now start the project!
