MACHINE LEARNING WITH GLUE
&
GLUE STUDIO NOTEBOOKS

Welcome to Part 5!

The Part 5 - Machine Learning with Glue & Glue Studio Notebooks - of the ETL Train The Trainer Workshop is going to cover the steps required to work with the Glue ML Transforms, more specifically, it will teach you about how to create, train (with labeling files), and write Glue ETL code that leverages the Glue's FindMatches ML Transform using Glue Studio Notebooks that you can further operationalize it into Glue Jobs.

0. (Pre Steps) - Understading & Setting up the Resources for ML Lab

To begin, you must first run the following commands in your Cloud9 Terminal to download the the ML Lab files from the Workshop's default S3 Bucket.

These commands will:

  • Create the local directory structure for this lab in your Cloud9 Environment
  • Place each file in its respective folder.
  • Re-upload all these files to your own S3 Bucket
  • Building the required S3 Bucket Path structure for this lab:
mkdir -p /tmp/dsd/csv_tables/ml-lab/ml-customer-sampling /tmp/dsd/csv_tables/ml-lab/ml-customer-full /tmp/dsd/csv_tables/ml-lab/ml-labeling-file

aws s3 cp s3://ee-assets-prod-${AWS_REGION}/modules/31e125cc66e9400c9244049b3b243c38/v1/downloads/etl-ttt-workshop/ml-customer/sample-customer/sample-top-customer.csv /tmp/dsd/csv_tables/ml-lab/ml-customer-sampling/sample-top-customer.csv

aws s3 cp s3://ee-assets-prod-${AWS_REGION}/modules/31e125cc66e9400c9244049b3b243c38/v1/downloads/etl-ttt-workshop/ml-customer/top-customer/full-top-customer.csv /tmp/dsd/csv_tables/ml-lab/ml-customer-full/full-top-customer.csv

aws s3 cp s3://ee-assets-prod-${AWS_REGION}/modules/31e125cc66e9400c9244049b3b243c38/v1/downloads/etl-ttt-workshop/ml-customer/labeled-customer/top-customer-labeling-file.csv /tmp/dsd/csv_tables/ml-lab/ml-labeling-file/top-customer-labeling-file.csv

aws s3 cp s3://ee-assets-prod-${AWS_REGION}/modules/31e125cc66e9400c9244049b3b243c38/v1/downloads/etl-ttt-workshop/ml-notebook/ml-lab-notebook-job.ipynb /tmp/dsd/csv_tables/ml-lab/ml-notebook/ml-lab-notebook-job.ipynb

aws s3 cp --recursive /tmp/dsd/csv_tables/ml-lab/ s3://$BUCKET_NAME/etl-ttt-demo/ml-lab/

For this part of the ETL Train the Trainer Workshop, two crawlers have been created for you as part of the CloudFormation Template:

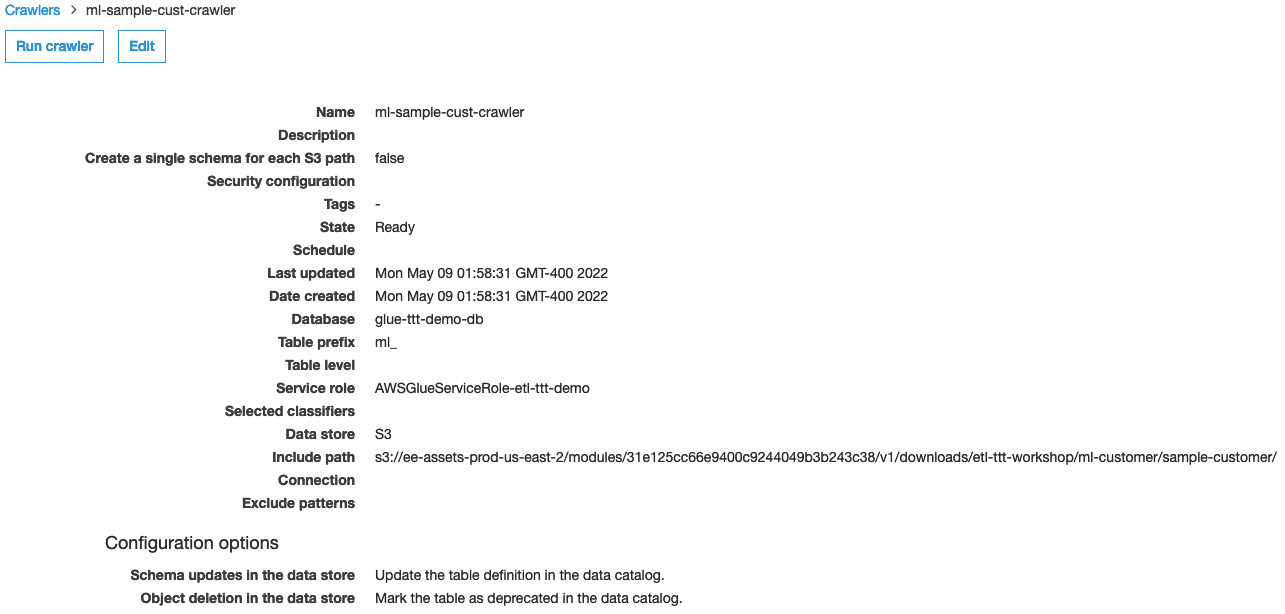

  • The ml-sample-cust-crawler will create the S3-based table named ml_sample-customer which has much less amount of data but large enough to be used as sample source data to train and label the FindMatches ML Transform you are going to create next.

TRAIL

  • The ml-bootstrap-crawler will create the S3-based table named ml_dedup_sample_customer which is the full dataset that the future Notebook Job will try to deduplicate using the FindMatch ML Transform that you trained using the smaller ml_sample-customer dataset.

TRAIL

1. Creating and Training the Glue FindMatches ML Transform

Run both crawlers above to create the aforementioned tables. (Both tables' schema are exactly the same as the original RDS customer table. They both contain 14 columns)

Once ml-bootstrap-crawler finish, click on ML Transforms menu, under the ETL section on the menu at the left. There, click on Add transform or the Create ML transform buttons.

      1. On Configure transform properties page, name the Trasform as FindMatches. Also, set the IAM Role to AWSGlueServiceRole-etl-ttt-demo. Click Next

      2. On Choose a data source page, select the table ml_sample_customer. Click Next.

      3. On Choose a primary key page, select the table c_customer_id. Click Next.

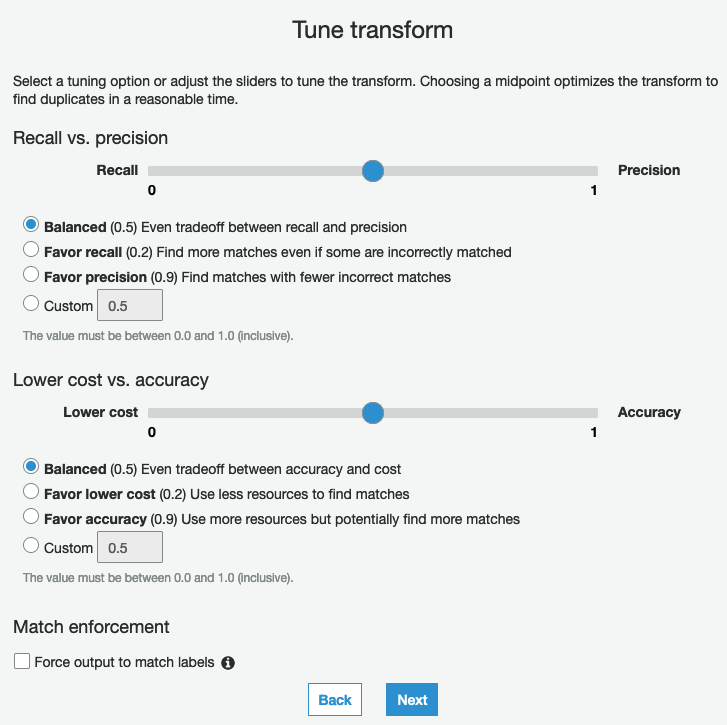

      4. On Tune transform page, under Recall vs. precision select the option Favor precision (0.9). Keep the option Balanced (0.5) selected. Click Next.

TRAIL

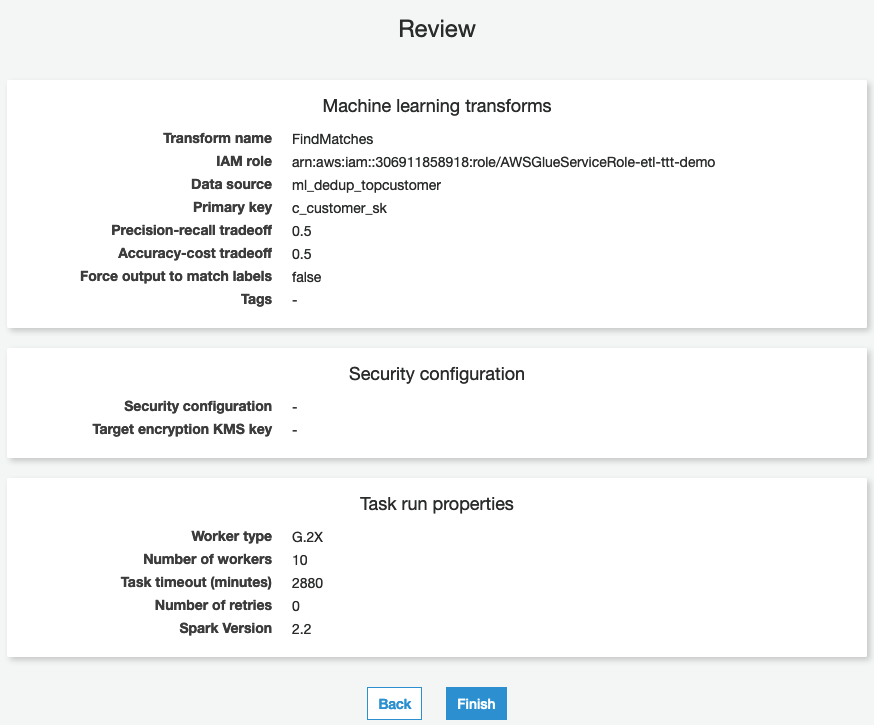

      5. Review everything on the Review page and Click Finish to create the FindMatches ML Transform.

TRAIL

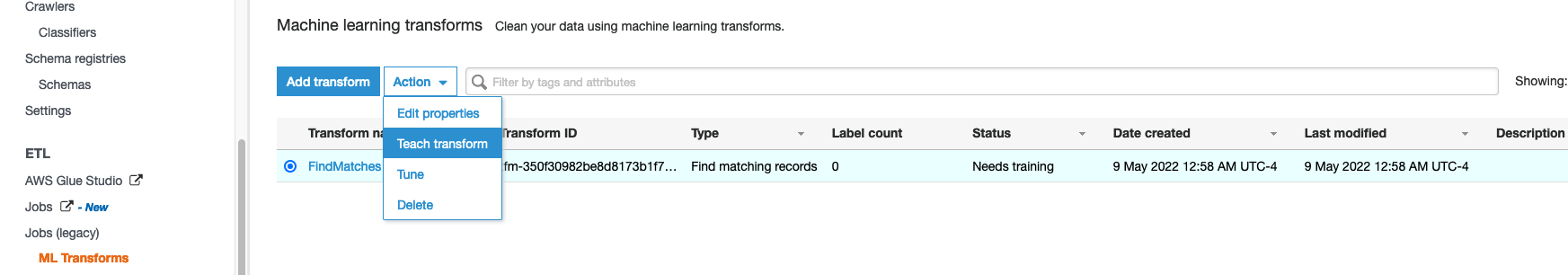

Now, it is time to teach your ML Transform. To do this, select the FindMatches Transform you just created, then click on the Action dropdown button and choose Teach Transform.

TRAIL

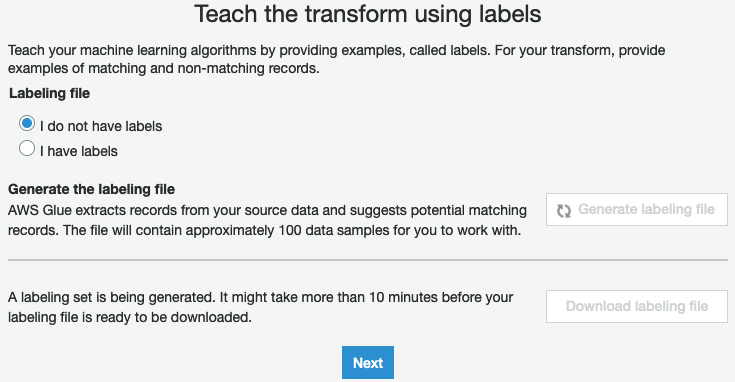

      1. On Teach the transform using labels page, under Labeling file choose the option I don't have labels, then click on the Generate labeling file button.

      2. On Generate labeling file pop-up window, choose to S3 Path where you want to store the generated label file. Navigate to s3://\${BUCKET_NAME}/etl-ttt-demo/output and, before clicking on Generate button, first append /ml_gen_label_file/ to the path you navigated so far. Then click Generate.

TRAIL

Note: You don't need to wait for this generating labeling file process to finish because you already downloaded a fully labeled file (during the first step of this lab) to be used here. Jump to step 3 or, if you have enough time, you can wait for it to finish, then click on Download labeling file and perform the labeling process yourself.

      3. Click Next and, On the Upload labels, under Labeling file, now choose I have labels. Then click on Upload labeling file from S3 and navigate to the path: s3://\${BUCKET_NAME}/etl-ttt-demo/ml-lab/ml-labeling-file/ and select the file top-customer-labeling-file.csv.

      4. Choose Overwrite my existing labels and click Upload, then Next.

      5. On Estimate quality metrics (optional) just click Complete Later to finish teaching your FindMatches ML Transform.

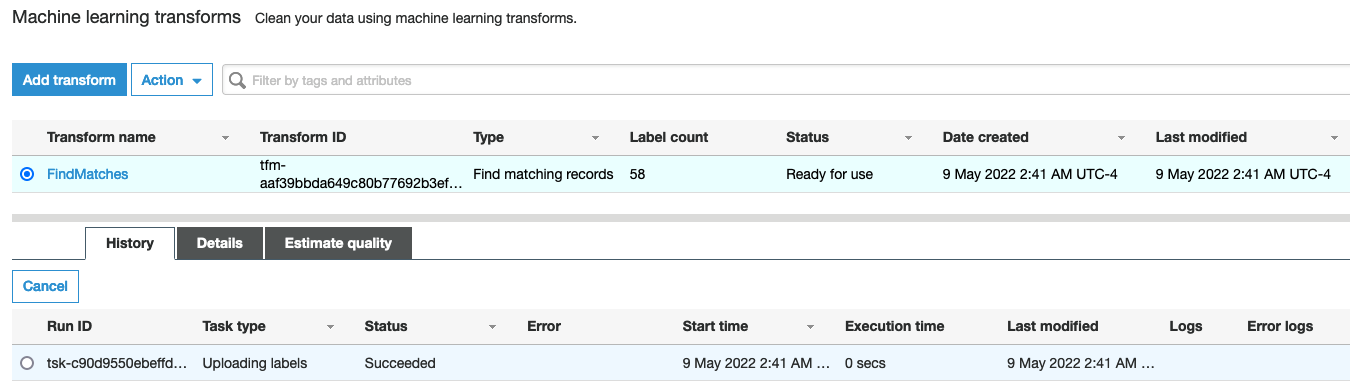

By selecting your Transform, you can see at the bottom, in the Task type column, that the Label Uploading Process has succeeded.

TRAIL

2. Testing FindMatches Transform with Glue Studio Notebook

Note: Before start testing, you need to download the Notebook file you will use for this section of the lab. Go to your S3 Bucket s3://\${BUCKET_NAME}/etl-ttt-demo/ml-lab/ml-notebook/ and download the file ml-lab-notebook-job.ipynb to your local computer. You will need it next!

Now that the FindMatches Transform is trained, go to the AWS Glue Studio once again and click on Jobs in the left side menu.

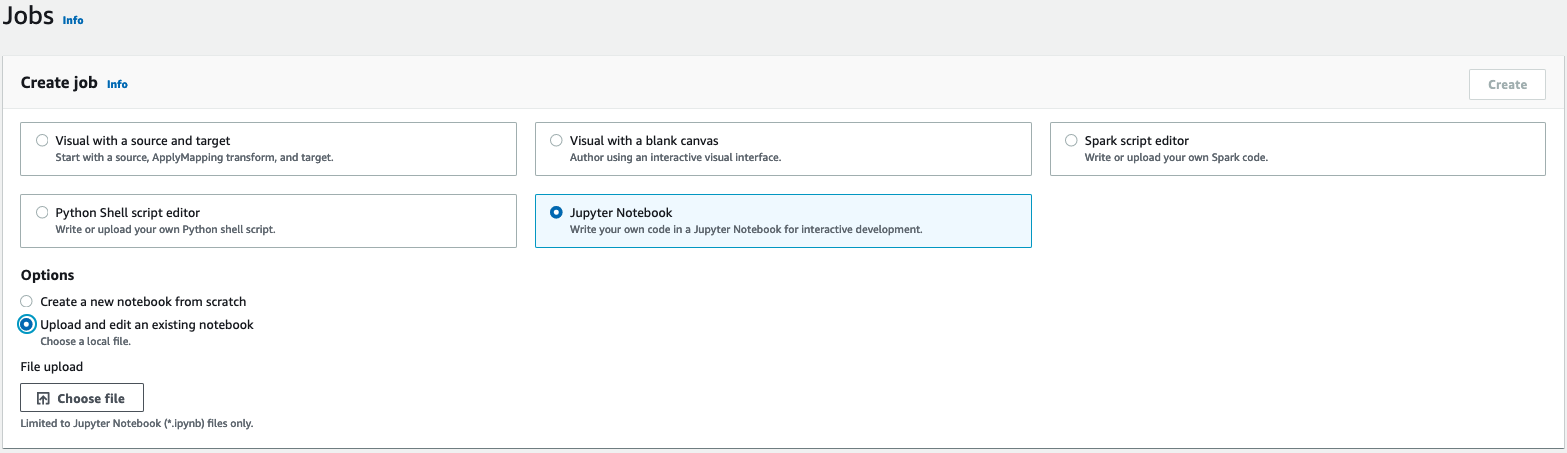

On the Jobs page, choose the Jupyter Notebook option and, under Options, choose the option Upload and edit an existing notebook and click on Choose File. Choose the file that has been shared with you which is located . Click on Create afterwards.

TRAIL

On the Notebook setup page, give the name to the Job as ml-lab-notebook-job and set the IAM to AWSGlueServiceRole-etl-ttt-demo. Click on Start notebook job button to create a Jupyter Notebook from an unpload notebook file.

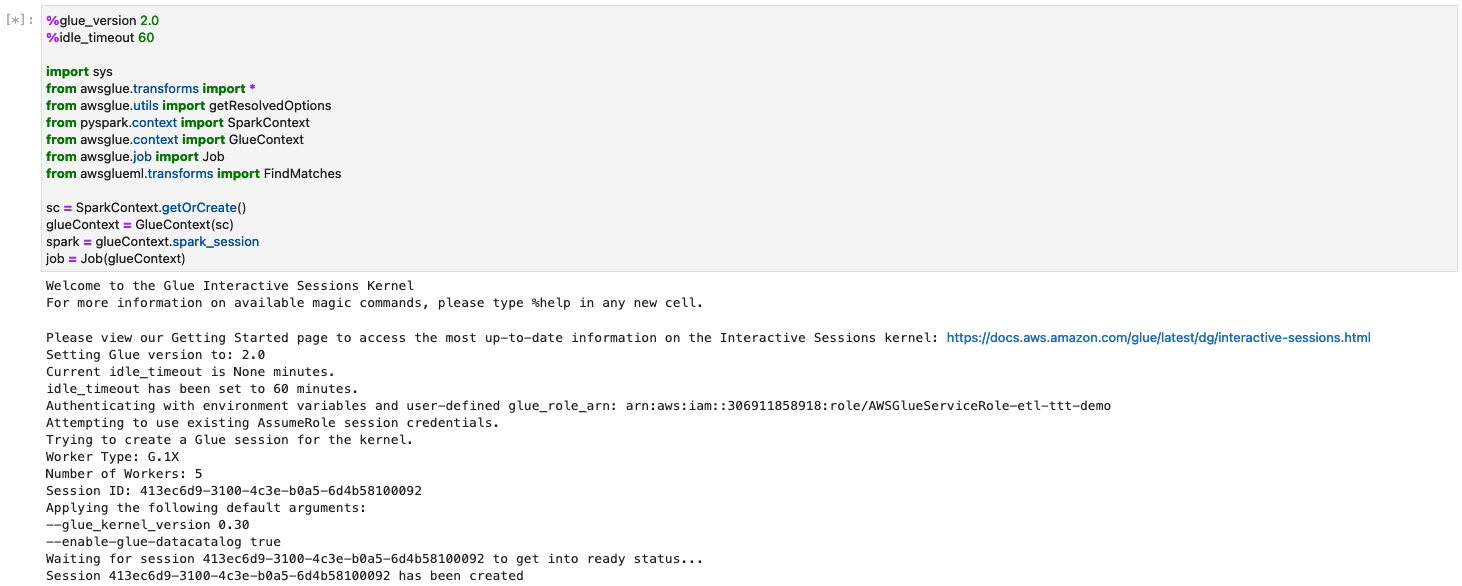

Once the Notebook is fully ready, run the very first Top Cell (Cell Zero) by clicking on the Play button (▶) at the top-center-left of the notebook interface: ---DO NOT click on the orange run button on the far left---

TRAIL

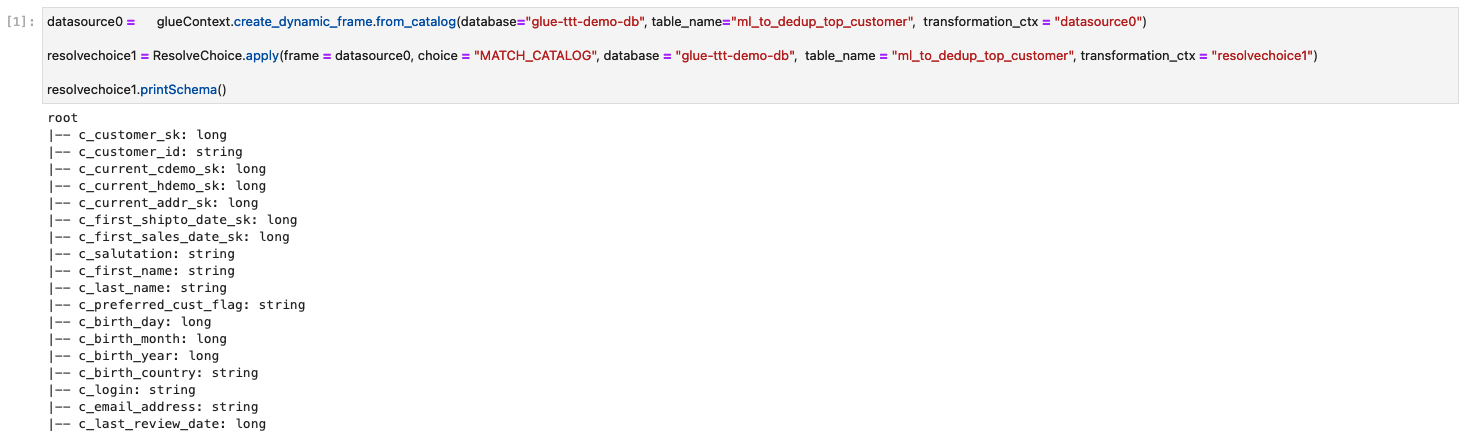

Once you see a message saying "Session XXXX-XXXX-XXXX has been created", like the picture above, run the Cell [1]:

TRAIL

You should see the ml_to_dedup_top_customer table's schema in the above output.

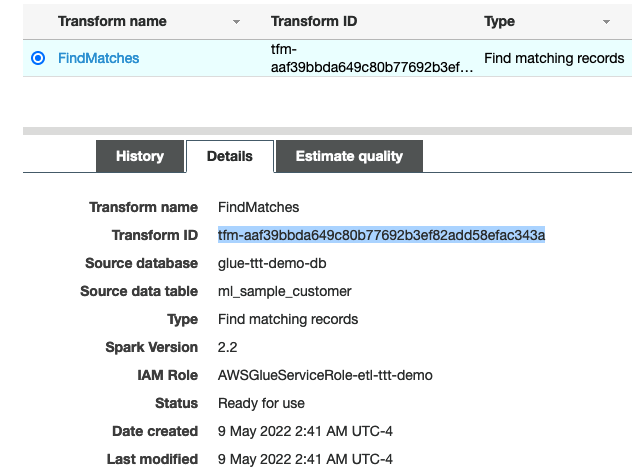

Before you can run the Cell [2], replace the <\${YOUR_TRANSFORM_ID}> placeholder for the Transform ID of the the FindMatches Transform that you created. Go back to your Glue Console and, under the Details tab copy the Transform ID

TRAIL

Once Transform ID is correctly replaced, run the Cell [2]. (This Cell should take about 5-10 minutes to finish!)

TRAIL

You should see the output displaying the message: "null_fields []"

While this is running, you can go to your Glue Console and see, in the History Tab that a new task for your FindML Transform will start to run thanks to the line of code you just executed.

3. Validating and Deploying the FindMatches Glue Job

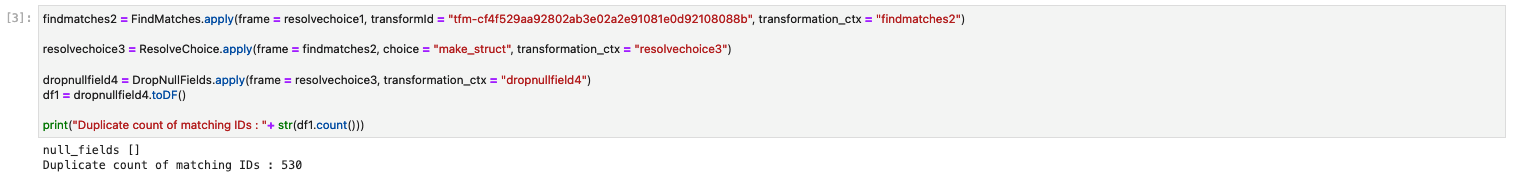

Now, to validate the FindML Transform results, simply run the Cell [3]:

TRAIL

You should see the output displaying the message: "Duplicate count of matching IDs : 530"

Also, you should also see that the FindMatches Transform has added another column named match_id to identify matching records in the output. That means that rows with the same match_id are considered matching records.

To confirm that the FindML Transform worked, you can actually see that from the 10 rows returned in the output 5 are duplicates. This proves that the FindMatches ML Transform is working!.

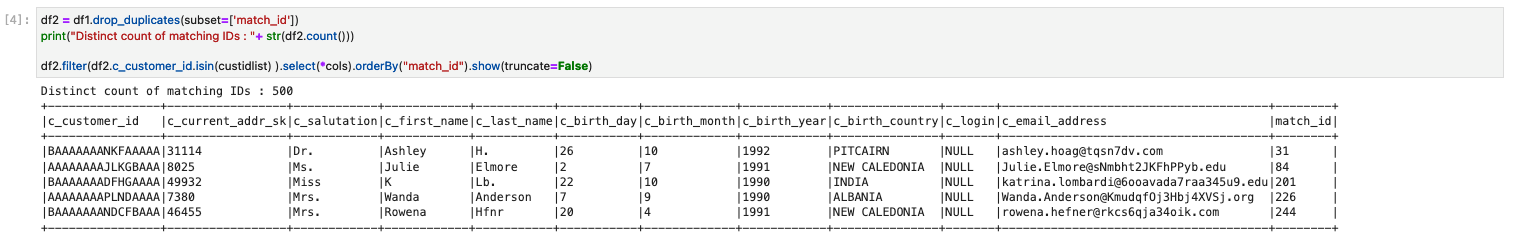

Now, let's leverage the match_id column created by the FindMatches Transform to eliminate the duplicates from the dataset. Run the Cell 4:

TRAIL

Notice the output displaying the message: "Duplicate count of matching IDs : 500"

That means the duplicates are now gone and that you have just created a code that leverages the a ML Transform that you created earlier to help you find and eliminate duplicates in your dataset.

You can now operationalize this code into a Glue Studio Job. But first, replace the <\$BUCKET_NAME> placeholder in the last cell with the following S3 Bucket path:

s3://${BUCKET_NAME}/etl-ttt-demo/output/data_analytics_team_folder/top-customers/

TIP: Run the following command in your Cloud9 Terminal to build the full path you need:

echo "s3://${BUCKET_NAME}/etl-ttt-demo/output/data_analytics_team_folder/top-customers/"

You run this last cell to sink the output data into the S3 Bucket. When the code in the Cell 5 finishes, it creates a deduplicated version of the full top customer dataset in S3. Check the above S3 Bucket Path to confirm the file is there.

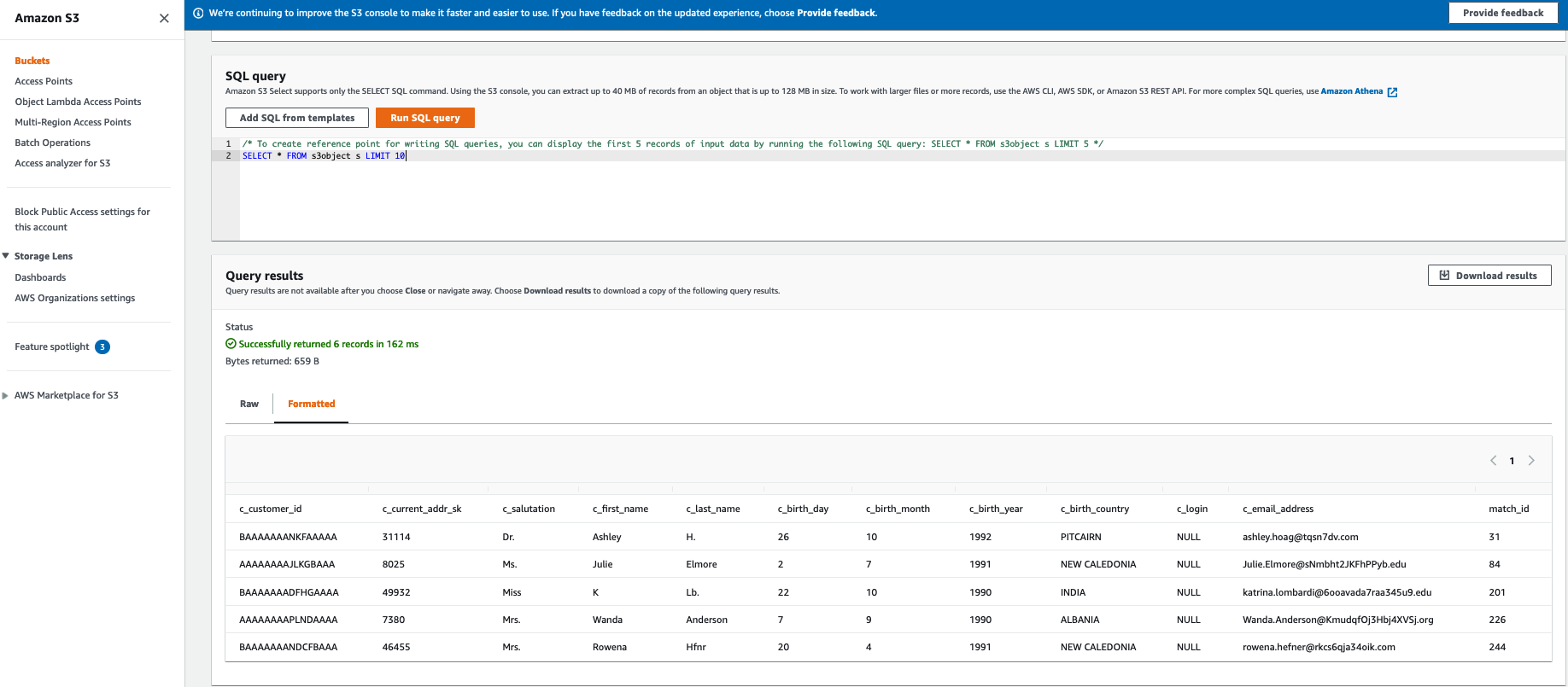

TIP: Optionally, you can also run S3 Select queries on the data generated to validate as seen in the picture below:

TRAIL

Note 1: This Bucket will be used in the next lab (Part 5) to act as a shared data repository where the Data Analytics team uploads their files for further Preparation & Analysis.

Note 2: In Cell 5, we are also adding a new column (ib_range_id) to the dataset that will be used in the final lab (Data Quality & Data Preparation with AWS Glue DataBrew) to suplement a join between two datasets.

Finally, Save your job and download the notebook by clicking on Download Notebook button at the top-right of the Glue Studio Notebook Page in order keep a copy of the notebook locally on your computer for safety.


You have now concluded the Part 5 - Machine Learning with Glue & Glue Studio Notebooks. Once you are ready move to the Part 6 - Workflow Orchestration with AWS Step Function.
